This firmware demo is a simple test of the set of character fonts built into the Decaf board firmware. USB is not activated in this test app. When power up, the Decaf-2 board displays the PiXCL logo, with instructions.

On each click of button K1, a set if fonts styles and sizes are displayed. Some information text is output on the COM1 port.

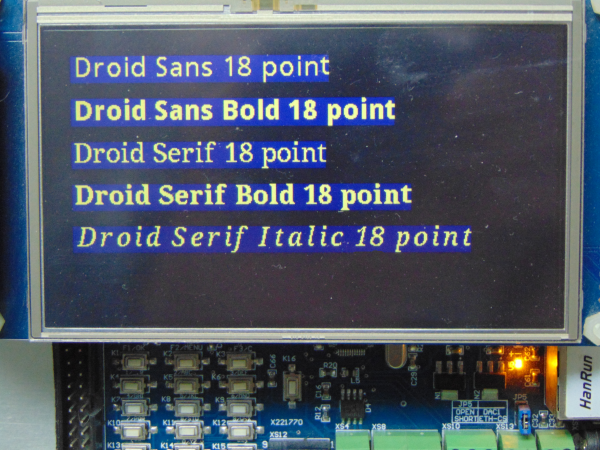

Power up screen (above) and some sample fonts (below).

This demo firmware is very basic and simply tests that the board and LCD is functional.

For a more comprehensive demonstration, see the USB HID Graphics Demo that configures the board as a USB Human Interface Device. PiXCL 11 includes a comprehensive set of commands to write graphics objects and text to the LCD.
